Overview

As AI transforms industries such as AIoT, smart cities, smart healthcare, smart retail, industrial automation, and automotive, the demand for high-performance, low-power, and reliable BGA SSDs has become critical. FerriSSD, powered by Silicon Motion's IntelligentSeries™ technologies, provides a robust storage solution designed for mission-critical AI applications, delivering enhanced data integrity, endurance, and security in even the most demanding environments.

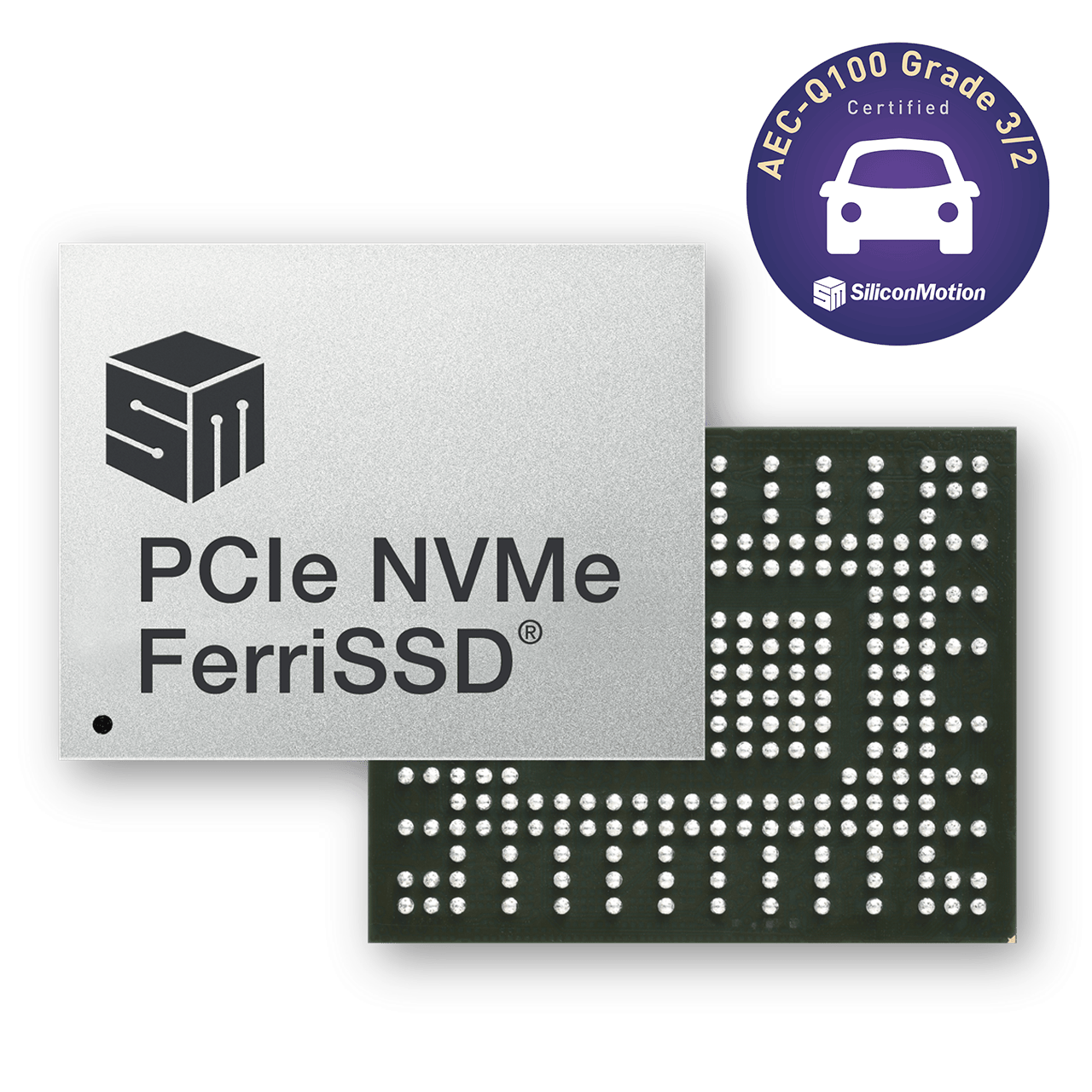

PCIe NVMe FerriSSD®

Specifically engineered for industrial and automotive use, FerriSSD supports PCIe Gen 4 x4 and integrates high-density 3D NAND into a compact 16mm x 20mm BGA package. It offers up to 1TB of storage, with read speeds exceeding 6GB/s and write speeds over 4GB/s, ensuring reliable, high-performance data processing. These capabilities make FerriSSD ideal for AI applications where performance, reliability, and security are essential.

With extended temperature support and flexible storage capacities, FerriSSD is optimized for a wide range of applications. Its easy integration accelerates deployment, while its compact design, combining proven controller technology, NAND flash, and passive components, simplifies system design and reduces time-to-market, while addressing NAND migration challenges.

FerriSSD also delivers enterprise-grade data integrity and reliability through Silicon Motion's proprietary NANDXtend® ECC technology and end-to-end data protection. It supports secure remote firmware updates to ensure continuous system security, while its built-in SR-IOV capability provides greater flexibility and scalability, maintaining robust security across applications.

Applications

Driving Automotive Innovation

Learn More

Features

Dual ARM Cortex R8 CPU
Digitally signed firmware with eFuse for enhanced security (option)
Data Reliability
  • Performance-optimized LDPC engine provides maximum error correction capability
  • End-to-end data path protection with CRC parity
  • SRAM ECC error handing and prevention
  • RAID engine provides multi-page protection for NAND flash data
Data Integrity and Security
  • Built-in AES-128/256 Encryption
  • TCG Opal v2.01 compliant
  • Built-in hardware SHA384 and True Random Number Generator (TRNG)
Robust Data Protection
  • Advanced system level protection against unstable power supply
  • StaticDataRefresh and EarlyRetirement technologies ensure data integrity and prevent read disturbance
  • PowerShield and DataPhoenix technologies support power-down data protection and recovery
Advanced Global Wear Leveling
  • Fully utilizes each cell to even program/erase count across management units/die(s)
  • Maximizes product lifespan with minimal wear leveling and write amplification overhead
SSD Status Monitoring
  • Supports SMART/Telemetry of Get Log Page command to monitor SSD Status
  • Supports proprietary FerriSSD IntelligentLog™ for efficient event tracing
Power and Thermal Management
  • Supports Host Controlled Thermal Management (HCTM) to configure thermal throttling temperatures
  • Supports Device Self-Thermal Management
  • Supports different power states (PS0, PS1, PS2, PS3, PS4)

Technologies

IntelligentSeries™ Technologies

FerriSSD comes with a set of intelligent data protection mechanisms that meet the storage needs of different application systems and can be effectively activated in various environments where data loss may occur.

Learn more

IntelligentLog™
Automotive/Server Smart Telemetry with Active Warning

IntelligentGuard™
Data Encryption with Authenticated Firmware Protection

IntelligentThermal™
HCTM / DCTM (Thermal Management)

IntelligentFlush™
Power Flush to Improve Stable Fast Write Performance

IntelligentImage™
Content Preload Service for SMT Reflow

IntelligentZones™
Endurance Groups - Multi-Namespace, etc.

IntelligentScan™
Proven Proactive Data Preservation

IntelligentShield™
Protection against Power Interrupt

End-to-End Data Path Protection to Ensure Data Integrity

FerriSSD provides robust error detection and recovery to ensure data integrity across the entire Host-to-NAND-to-Host path. The data recovery algorithm detects errors in hardware, firmware, and memory (SRAM, DRAM, NAND), guaranteeing reliable performance.

NANDXtend® ECC Technology to Extended SSD Lifespan

NANDXtend® is Silicon Motion's advanced firmware for 3D NAND SSDs, combining LDPC and RAID correction for precise, high-speed error correction. Its three-level algorithm enhances P/E cycle performance, extending SSD lifespan and ensuring data integrity.

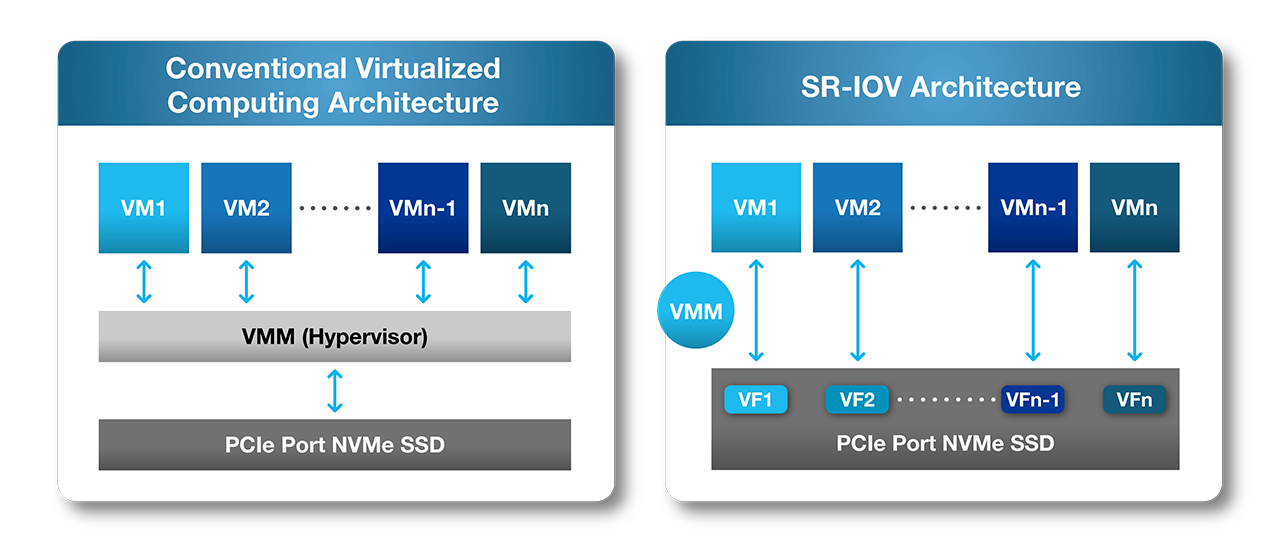

Single Root-IO Virtualization (SR-IOV) to Enhance Virtualized Storage

With SR-IOV, FerriSSD enables direct, high-speed PCIe access for up to eight VMs, optimizing resource use, reducing latency, and minimizing CPU load by bypassing the hypervisor—ideal for efficient virtualized storage in automotive modules.

Learn more

Downloads

White Paper

DocumentationDownload
Empowering Humanoid Robots with Ferri Embedded Storage SolutionsDownload
Revolutionizing AI Robotics: Ferri Solutions for Real-Time Data and DurabilityDownload
FerriSSD with DefendMax™: Secure and Reliable Boot Drive for Rugged ApplicationsDownload
Increasing Solid State Drive Reliability with Intelligent Data ProtectionDownload
How FerriSSD® Ensures Availability, Longevity, and Security in Networking and TelecomDownload
How to Solve Data Integrity Challenge for Frictionless Retail StoreDownload
Protecting Data Security in Digital Surveillance EquipmentDownload
Silicon Motion's FerriSSD®: How Advanced FerriSSDs® Provide Full Data Protection for Cyber SecurityDownload
Silicon Motion's NAND Memory Solutions for Autonomous and Electric Automotive ApplicationsDownload
Silicon Motion's FerriSSD®: Enhancing the Safety and Reliability of Computer On Module DesignsDownload
Silicon Motion's Ferri Family: How Ferri products offer secure and reliable data storage for gaming equipmentDownload
Silicon Motion's FerriSSD®: How advanced FerriSSDs® eliminate bit errors over a long operating lifetimeDownload
Silicon Motion's Ferri Family: AEC-Q100 Qualified Embedded StorageDownload
Silicon Motion's FerriSSD®: Offers the Stability and Data Security Required in Medical EquipmentDownload
Silicon Motion's PCIe NVMe FerriSSD®: Enables High Speed and High Reliability for Digital SignageDownload
Silicon Motion's PCIe FerriSSD®: Designed Specifically for Industrial/Embedded ApplicationsDownload
Silicon Motion's Ferri Family: Optimizes Embedded Flash-based Storage for Automotive UseDownload
Silicon Motion's New FerriSSD®: Boosts Server Performance in a BGA-SSDDownload
Silicon Motion's FerriSSD®: For Embedded Boot Load ApplicationsDownload
